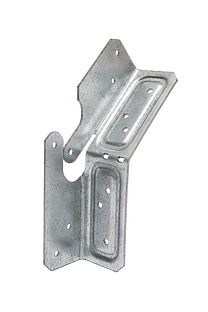

Simpson Strong KBS Knee Brace Stabilizer

Simpson Strong-Tie Company

SKU: KBS1
  • $2.50
    Unit price per



The KBS1Z knee brace stabilizer makes a structural connection between knee bracing and columns or beams to help stabilize freestanding structures and comply with many prescriptive deck bracing requirements such as AWC's DCA6 Prescriptive Residential Wood Deck Construction Guide. Factory-formed at a 45° angle and easily installed with nails, the KBS1Z braces 2x, 4x and 6x in line post-to-beam configurations. Check with your local building department for deck bracing requirements.

Material

  • 16 gauge

Finish

  • ZMAX® coating

Installation

  • Use all specified fasteners; see General Notes.
  • For installations at an angle other than 45°, bend KBS1Z along slots to desired angle. Bend one time only.



  • Knee Brace:
    — Cut braces at desired angle
    — Bend KBS1Z to desired angle if required
    — Install fasteners to secure in place
    — For equal-width members, install (2) KBS1Z on each end of brace (see illustration, connection type 1)
    — For 2x knee brace, install single KBS1Z on each end of brace (see illustration, connection type 2)
  • Beam-to-Post:
    — Install in pairs; see illustrations for quantity and configuration
    — Part used as a column cap; does not replace a knee brace
