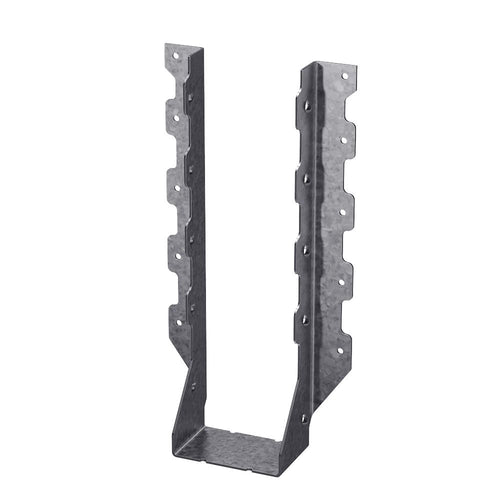

Simpson Strong HUS Heavy U-Shaped Hanger with Double-Shear Nailing

Simpson Strong-Tie Company

SKU: HUS1.81/10

$11.00
Unit price per

Select

Quantity

The HUS is designed for applications where higher loads are needed. This hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This feature allows for fewer nails, faster installation and the use of all common nails for the same connection.

Key Features

Can be installed after the beam is secured in place
Cannot be modified
HUS-series hangers are tested, load rated and code compliant

Material

See tables

Finish

Galvanized. Some products available in stainless steel or ZMAX^® coating. See Corrosion Information.

Installation

Use all specified fasteners; see General Notes.
Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
Not designed for welded or nailer applications.
Do not use double-shear hangers with I-joists.
With 2x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.64 of the table values. When 0.148" x 3" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.77 of the table values. See Fastener Design Information.
With 3x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.162" x 2 1/2" nails into the header and 0.162" x 3 1/2" nails into the joist with no load reduction. When 0.148" x 3" nails are specified, use 0.148" x 2 1/2" nails into the header and 0.148" x 3" nails into the joist with no load reduction.
