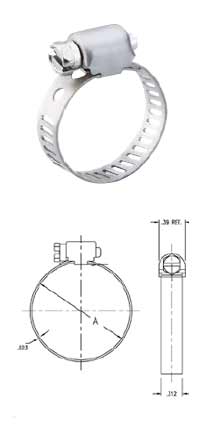

BREEZE MINI Clamp

Breeze Hose Clamps

SKU: 41915

+ -

A lightweight, streamlined clamp generally used in small diameter applications such as air & fuel lines. The streamlined configuration allows for installation in tight fitting or difficult to reach areas. This clamp creates high sealing pressure with only 10 to 15 in./lbs. of installation torque.

5/16" (7.9 mm) band
1/4" (6.4 mm) slotted hex head screw

Per SAE standard J1508 Type ”M”



EFFECTIVE DIAMETER RANGE PART NUMBERS
SAE Size Min. Max. Plated Hex Screw 410 SS Hex Screw 300 SS Hex Screw All 316 SS
in. mm. in. mm.
4 7//32 5.6 5/8 16 3504 3604 3704 3804
6 7/16 11 25/32 20 3506 3606 3706 3806
8 1/2 13 29/32 23 3508 3608 3708 3808
10 9/16 14 1-1/16 27 3510 3610 3710 3810
12 11/16 17 1-1/4 32 3512 3612 3712
16 15/16 24 1-1/2 38 3516 3616 3716
20 1-3/16 30 1-3/4 44 3520 3620 3720
24 1-7/16 37 2 51 3524 3624 3724
28 1-11/16 43 2-1/4 57 3528 3628 3728
32 1-15/16 49 2-1/2 64 3532 3632 3732
